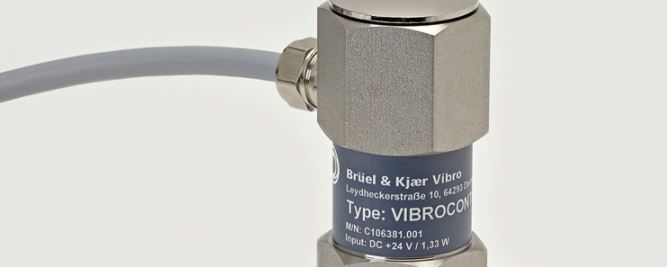

VIBROCONTROL 850

Easy-to-use and reliable protection of many different machines, such as blowers, fans, pumps, decanters, separators, compressors and mills. VIBROCONTROL 850 has an internal acceleration sensor and constantly monitors the machine vibration level against two adjustable alarms. The device is configured directly at the monitoring unit by means of DIP switches.

Provides a broad range of applications. It ensures reliable machine protection on many different machines, e.g. blowers, ventilators, pumps, decanters, separators, compressors and mills. The VIBROCONTROL 850 continuously monitors the machine vibration level.

Two adjustable alarms can be used to ensure that the machine vibrations do not exceed the acceptable level. The operator will gain an active protection of the machine, which limits the damages to the machine and consequently will reduce the maintenance.

※VIBROCONTROL 850 includes an internal acceleration sensor and provides

  • a 4~20mA analogue output proportional to the vibration velocity in mm/s rms and

  • relay outputs for alert and danger

• Integrated capacitive accelerometer
• 2 alarm relays and 1 analog output in a single simple device
• Simple on-site configuration possibilities; no additional tools needed
• Machine protection according to DIN/ISO 10816
• IP68 Housing
• Power supply +24 VDC
